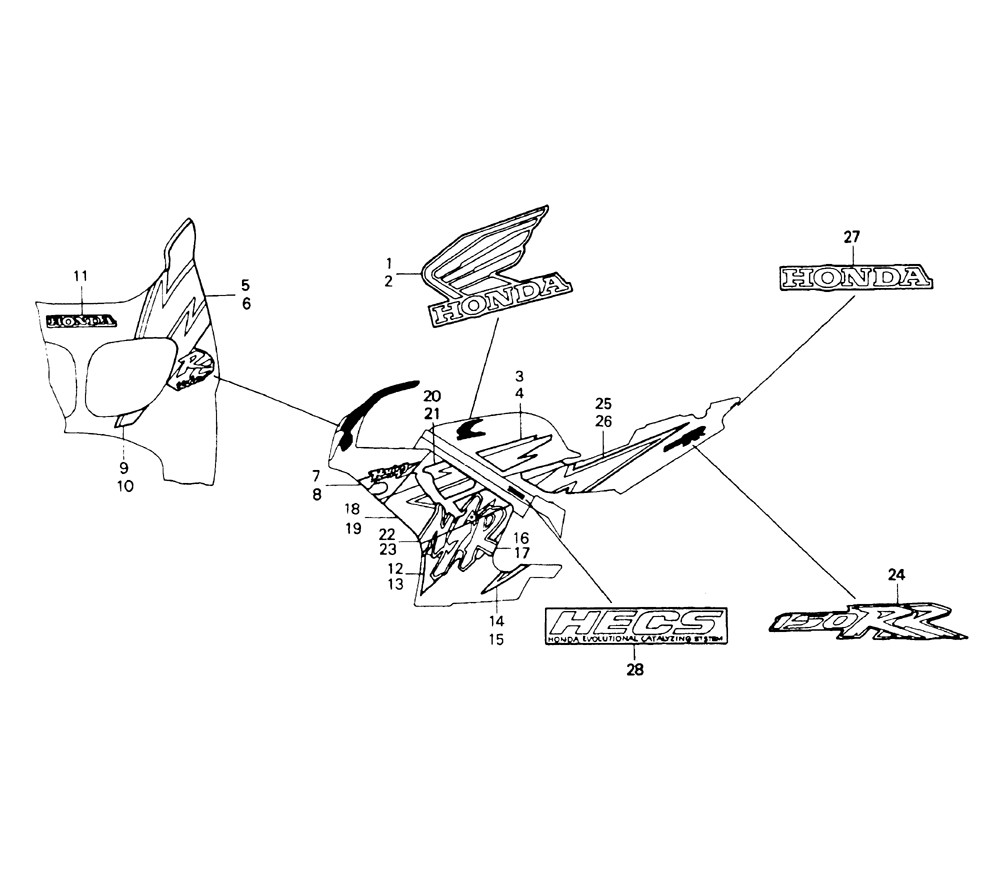

Salam RC Valve bro n sist, posting kali ini mengenai daftar spare part NSR 150 New RR (RRW) di bagian striping model W. Monggo silakan disimak, siapa tau berguna...
TYPE
|
MAIN BODY
|
POSITION
|
||||
A
|
B
|
C
|
D
|
E
|
||
TYPE 1
|
Sparkling Red
(R.127)
|
Light green
|
Light silver
|
Carbon
|
Violet
|
Sparkling red
|
TYPE 2
|
Rama Blue Metalic (PB-279M)
|
Hot red
|
Blue violet
|
Carbon
|
Hot red
|
Rama blue
|
TYPE 3
|
Black (NH-1)
|
Dynamite red
|
Terra silver metalic
|
Dark violet
|
Dynamite red
|
Dark violet
|
REF. NO
|
PART NUMBER
|
DESCRIPTION
|
REQD. NO
|
1
|
17513-KW6-670ZA
|
MARK, R. FUEL TANK *TYPE1*
|
1
|
17513-KW6-670ZB
|
MARK, R. FUEL TANK *TYPE2*
|
1
|
|
17513-KW6-670ZC
|
MARK, R. FUEL TANK *TYPE3*
|
1
|
|
2
|
17514-KW6-670ZA
|
MARK, L. FUEL TANK *TYPE1*
|
1
|
17514-KW6-670ZB
|
MARK, L. FUEL TANK *TYPE2*
|
1
|
|
17514-KW6-670ZC
|
MARK, L. FUEL TANK *TYPE3*
|
1
|
|
3
|
17515-KW6-670ZA
|
STRIPE, R. FUEL TANK *TYPE1*
|
1
|
17515-KW6-670ZB
|
STRIPE, R. FUEL
TANK *TYPE2*
|
1
|
|
17515-KW6-670ZC
|
STRIPE, R. FUEL TANK *TYPE3*
|
1
|
|
4
|
17516-KW6-670ZA
|
STRIPE, L. FUEL
TANK *TYPE1*
|
1
|
17516-KW6-670ZB
|
STRIPE, L. FUEL TANK *TYPE2*
|
1
|
|
17516-KW6-670ZC
|
STRIPE, L. FUEL
TANK *TYPE3*
|
1
|
|
5
|
64238-KW6-670ZA
|
STRIPE A, R. UPPER COWL *TYPE1*
|
1
|
64238-KW6-670ZB
|
STRIPE A, R.
UPPER COWL *TYPE2*
|
1
|
|
64238-KW6-670ZC
|
STRIPE A, R. UPPER COWL *TYPE3*
|
1
|
|
6
|
64239-KW6-670ZA
|
STRIPE A, L.
UPPER COWL *TYPE1*
|
1
|
64239-KW6-670ZB
|
STRIPE A, L. UPPER COWL *TYPE2*
|
1
|
|
64239-KW6-670ZC
|
STRIPE A, L.
UPPER COWL *TYPE3*
|
1
|
|
7
|
64241-KW6-670ZA
|
STRIPE B, R. UPPER COWL *TYPE1*
|
1
|
64241-KW6-670ZB
|
STRIPE B, R.
UPPER COWL *TYPE2*
|
1
|
|
64241-KW6-670ZC
|
STRIPE B, R. UPPER COWL *TYPE3*
|
1
|
|
8
|
64242-KW6-670ZA
|
STRIPE B, L.
UPPER COWL *TYPE1*
|
1
|
64242-KW6-670ZB
|
STRIPE B, L. UPPER COWL *TYPE2*
|
1
|
|
64242-KW6-670ZC
|
STRIPE B, L.
UPPER COWL *TYPE3*
|
1
|
|
9
|
64243-KW6-670ZA
|
STRIPE C, R. UPPER COWL *TYPE1, 2*
|
1
|
64243-KW6-670ZC
|
STRIPE C, R.
UPPER COWL *TYPE3*
|
1
|
|
10
|
64244-KW6-670ZA
|
STRIPE C, L. UPPER COWL *TYPE1, 2*
|
1
|
64244-KW6-670ZC
|
STRIPE C, L.
UPPER COWL *TYPE3*
|
1
|
|
11
|
64456-KW6-670ZA
|
MARK, UPPER COWL (HONDA) *TYPE1*
|
1
|
12
|
64460-KW6-670ZA
|
STRIPE A, R.
UNDER COWL *TYPE1*
|
1
|
64460-KW6-670ZB
|
STRIPE A, R. UNDER COWL *TYPE2*
|
1
|
|
64460-KW6-670ZC
|
STRIPE A, R.
UNDER COWL *TYPE3*
|
1
|
|
13
|
64461-KW6-670ZA
|
STRIPE A, L. UNDER COWL *TYPE1*
|
1
|
64461-KW6-670ZB
|
STRIPE A, L.
UNDER COWL *TYPE2*
|
1
|
|
64461-KW6-670ZB
|
STRIPE A, L. UNDER COWL *TYPE3*
|
1
|
|
14
|
64462-KW6-670ZA
|
STRIPE B, R. UNDER COWL *TYPE1*
|
1
|
64462-KW6-670ZB
|
STRIPE B, R. UNDER COWL *TYPE2*
|
1
|
|
64462-KW6-670ZC
|
STRIPE B, R. UNDER COWL *TYPE3*
|
1
|
|
15
|
64463-KW6-670ZA
|
STRIPE B, L. UNDER COWL *TYPE1*
|
1
|
64463-KW6-670ZB
|
STRIPE B, L. UNDER COWL *TYPE2*
|
1
|
|
64463-KW6-670ZC
|
STRIPE B, L. UNDER COWL *TYPE3*
|
1
|
|
16
|
64477-KW6-670ZA
|
STRIPE A, R. LOWER COWL LID *TYPE1*
|
1
|
64477-KW6-670ZB
|
STRIPE A, R. LOWER COWL LID *TYPE2*
|
1
|
|
64477-KW6-670ZC
|
STRIPE A, R. LOWER COWL LID *TYPE3*
|
1
|
|
17
|
64478-KW6-670ZA
|
STRIPE A, L. LOWER COWL LID *TYPE1*
|
1
|
64478-KW6-670ZB
|
STRIPE A, L. LOWER COWL LID *TYPE2*
|
1
|
|
64478-KW6-670ZC
|
STRIPE A, L. LOWER COWL LID *TYPE3*
|
1
|
|
18
|
64479-KW6-670ZA
|
STRIPE B, R. LOWER COWL LID *TYPE1*
|
1
|
64479-KW6-670ZB
|
STRIPE B, R. LOWER COWL LID *TYPE2*
|
1
|
|
64479-KW6-670ZC
|
STRIPE B, R. LOWER COWL LID *TYPE3*
|
1
|
|
19
|
64480-KW6-670ZA
|
STRIPE B, L. LOWER COWL LID *TYPE1*
|
1
|
64480-KW6-670ZB
|
STRIPE B, L. LOWER COWL LID *TYPE2*
|
1
|
|
64480-KW6-670ZC
|
STRIPE B, L. LOWER COWL LID *TYPE3*
|
1
|
|
20
|
83546-KW6-670ZA
|
MARK, SIDE
COVER *TYPE1*
|
2
|
83546-KW6-670ZB
|
MARK, SIDE COVER *TYPE2*
|
2
|
|
83546-KW6-670ZC
|
MARK, SIDE
COVER *TYPE3*
|
2
|
|
21
|
83547-KW6-670ZA
|
STRIPE, R. SIDE COVER *TYPE1*
|
1
|
83547-KW6-670ZB
|
STRIPE, R.
SIDE COVER *TYPE2*
|
1
|
|
83547-KW6-670ZC
|
STRIPE, R. SIDE COVER *TYPE3*
|
1
|
|
22
|
83548-KW6-670ZA
|
STRIPE, L.
SIDE COVER *TYPE1*
|
1
|
83548-KW6-670ZB
|
STRIPE, L. SIDE COVER *TYPE2*
|
1
|
|
83548-KW6-670ZC
|
STRIPE, L.
SIDE COVER *TYPE3*
|
1
|
|
23
|
83570-KW6-670ZA
|
MARK, TAIL PANEL (HONDA) *TYPE1*
|
1
|
24
|
87121-KW6-840
|
MARK, HECS
|
2
|
